GraphQL Security types in IBM API Connect

Here in this blog, we are going to learn the security types of GraphQL in IBM API Connect.

API Key:

1. API keys are simple, alphanumeric codes provided to clients (applications or users) that want to access an API.
2. Clients include the API key in the request headers or query parameters when making API calls.
3. API keys are often used for rate limiting, access control, and tracking usage.
4. They are straightforward to implement but can be less secure if not managed properly, as they can be easily shared or leaked.

Basic Authentication:

1. Basic Authentication is a method where the client includes a username and password in the request headers.
2. The credentials are typically Base64-encoded and sent with every API request.
3. While simple to implement, Basic Authentication is not recommended for high-security scenarios unless used over HTTPS.
4. It’s essential to secure the credentials and avoid sending them in plaintext.

OAuth (Open Authorization):

1. OAuth is a more comprehensive and secure authorization framework for delegating access to resources without sharing sensitive credentials.
2. OAuth 2.0, the most common version, involves three main roles: the resource owner, the client, and the authorization server.
3. The client requests access to protected resources on behalf of the resource owner by obtaining an access token from the authorization server.
4. OAuth supports various grant types, such as Authorization Code, Implicit, Client Credentials, and Password, each suited for different use cases.
5. OAuth is widely used for securing APIs accessed by third-party applications, mobile apps, and web services.

GraphQL Server URL:

https://spacex-production.up.railway.app/

GraphQL schema: SpaceX-production.up.railway.app

Creation of GraphQL Proxy API in API Connect:

Step 1: Open API Manager

Step 2: Go to Resources à Oauth Providers.

Step 3: Create a new OAuth Provider, Click on add select native OAuth Provider, and give a name to the Provider.

Step 4: Now select the Grant Type,

Step 5: Select the scope

Step 6: Now go to Catalog and add the OAuth that we created now in OAuth Providers.

Step 7: In Develop click on Add, select API

Step 8: Select the option from an existing graphql server

Step 9: Give a Name and Import the GraphQL Server

• The schema will be added automatically once you import the GraphQL Server

Step 10: Now go to the security schemas and add the client ID, client secret, and Oauth2.0

Step 11: Add these 3 security parameters to the API security.

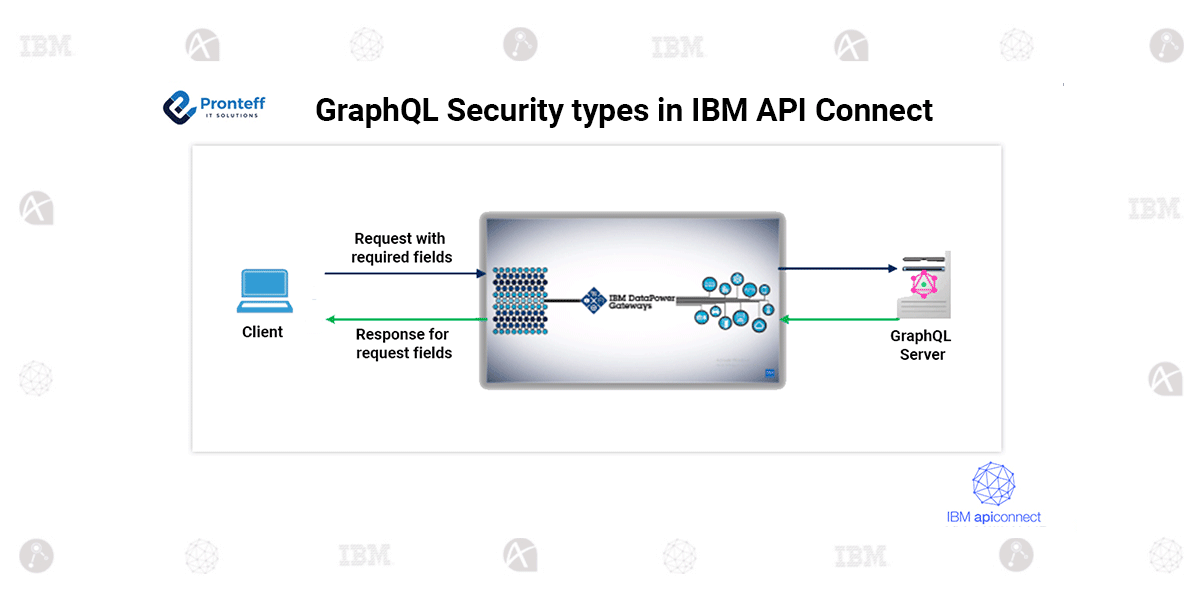

  API Flow:

Testing:

Actual GraphQL Backend Testing:

Testing of Proxy GraphQL API in API Connect:

• First, generate the token

• Pass the Generated token along with the client ID and client secret while calling the Graph QL API.
